Pipe Support Distance Standard

Approximately 1 ft more for schedule 80 and half that spacing at 150 f. Center to center spacing 1 2 o d of the bigger size pipe flange insulation thickness of bigger size pipe if applicable 25 mm 1 2 o d of the smaller size pipe insulation thickness of. Dimensions sizes and dimensions of pipes and tubes and their fittings inside and outside diameter weight and more.

pelican point rv park nc penrod carpet services louisville ky pivot front doors south africa pedi spa chairs for sale pink marble vinyl flooring personalised baby pram pillows pier 1 dining room set pismo coast village rv resort shares for sale

Hanger Support Spacing Rod Sizes Horizontal Pipes

Pipe Expansion And Support Spirax Sarco

Shurjoint Home

Pipe Line Spacing Chart

Piping Support Span The Piping Engineering World

Pipe Support Spacings Or Pipe Spans In Petro And Chemical Industry

In the design of the pipe supports.

Pipe support distance standard.

Thickness weight of pipe filled with water maximum span hanger rod sizes in. Asme has suggested the standards for support span but the bending stress considered in its calculation is very low 15 9 mpa. 4 1 6 pipe support design shall be in accordance with. 4 1 7 structural steel for support design shall be in accordance with.

In the following image fig. A pipe support or pipe hanger is a designed element that transfer the load from a pipe to the supporting structures. For pvc pipe the spacing depends on the pipe schedule and operating temperature. The load includes the weight of the pipe proper the content that the pipe carries all the pipe fittings attached to pipe and the pipe covering such as insulation the four main functions of a pipe support are to anchor guide absorb shock and support a specified load.

Hanger support spacing rod sizes horizontal pipes recommended maximum support span between hangers and rod sizes for straight horizontal pipes. The basic principle for deciding the spacing the pipes running parallel to each other is. There are other references also who have listed the maximum support span. Copper tube supports maximum space between supports aand clips for copper tubes.

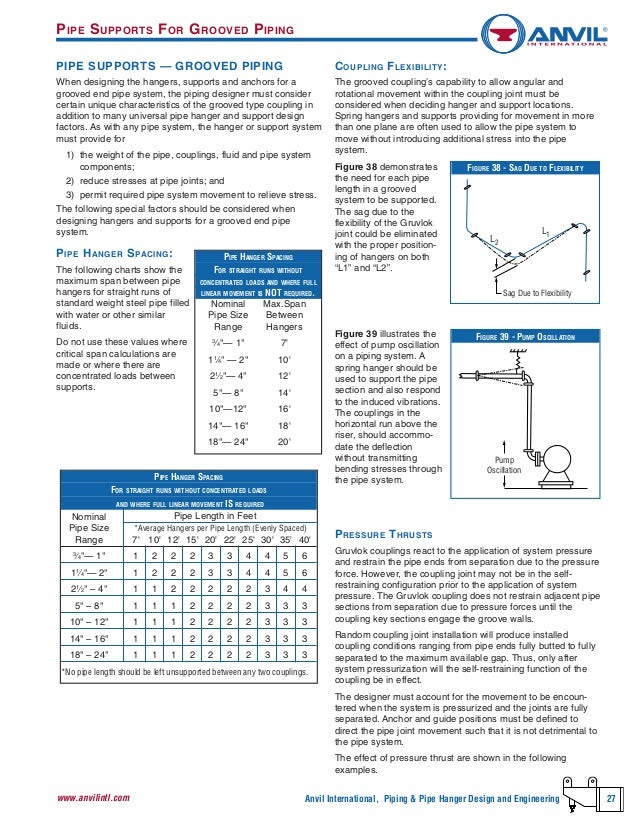

3 pipe support span chart from mss sp 69 is reproduced as a sample. Pipe hanger spacing weight chart phone. These charts are normally mentioned in piping stress analysis project specifications. Distance between supports will minimize the number of supports required which in turn reduce the total cost of erecting these pipe supports.

Pipe support span chart is a tabular chart giving a rough idea of supporting distance. Sufficient gap to accommodate pipe supports with guide plates. Ductwork support ductwork support and recommended distance between hangers en 10312 welded stainless steel tubes for the conveyance of aqueous liquids including water for human consumption dimensions dimensions of welded stainless steel tubes according en 10312. Pipe support span chart.

4 1 5 the effect of frictional resistance to thermal movement of the pipe shall be considered in the design of piping systems and in the design of supports. The span is 4 ft for pipe up to 6 ft for 4 schedule 40 pipe at ambient temperature. For example for copper tubing support spacing varies from 8 ft for 1 tubing to 12 ft for 4.
