Pin Gage Set Plus Or Minus

A minus pin gauge set includes pins with a specified tolerance below the target size allowing the pin to fit within the target dimension.

Pin gage set plus or minus.

Which would you buy minus or. They are available in minus and plus tolerances. Every pin that i have checked has been 0002 undersize or oversize but that is not a universal given. Class zz 0002 or 0 005mm tolerance go plus or nogo minus.

I want some pin gages to measure small holes. Eric m liked this post. Those most commonly used are the minus pins. Gages are carbon chrome alloy steel grade 52100 bearing quality steel and heat treated to a 60 62 rockwell c hardness.

Set micrometers verniers and other measuring devices. Therefore a 9998 gauge pin might be actual size but it is generally referred to as a 1 000 pin the size shown on the pin. At msc you will find the plug pin gage sets you need for measuring hole sizes and depths and checking locations and distances between holes. There are shars to starret to meyer in terms of cost and i assume quality.

All gages are uniformly 2 long with ground ends allowing you to use both ends for increased gage life. They are tolerance up to 0002. If you re looking for a cheap passing grade quality set try enco. Minus pin gages normally found in sets can be anywhere between 0002 undersize to the nominal dimension and plus pin gages anywhere between nominal and 0002 oversize.

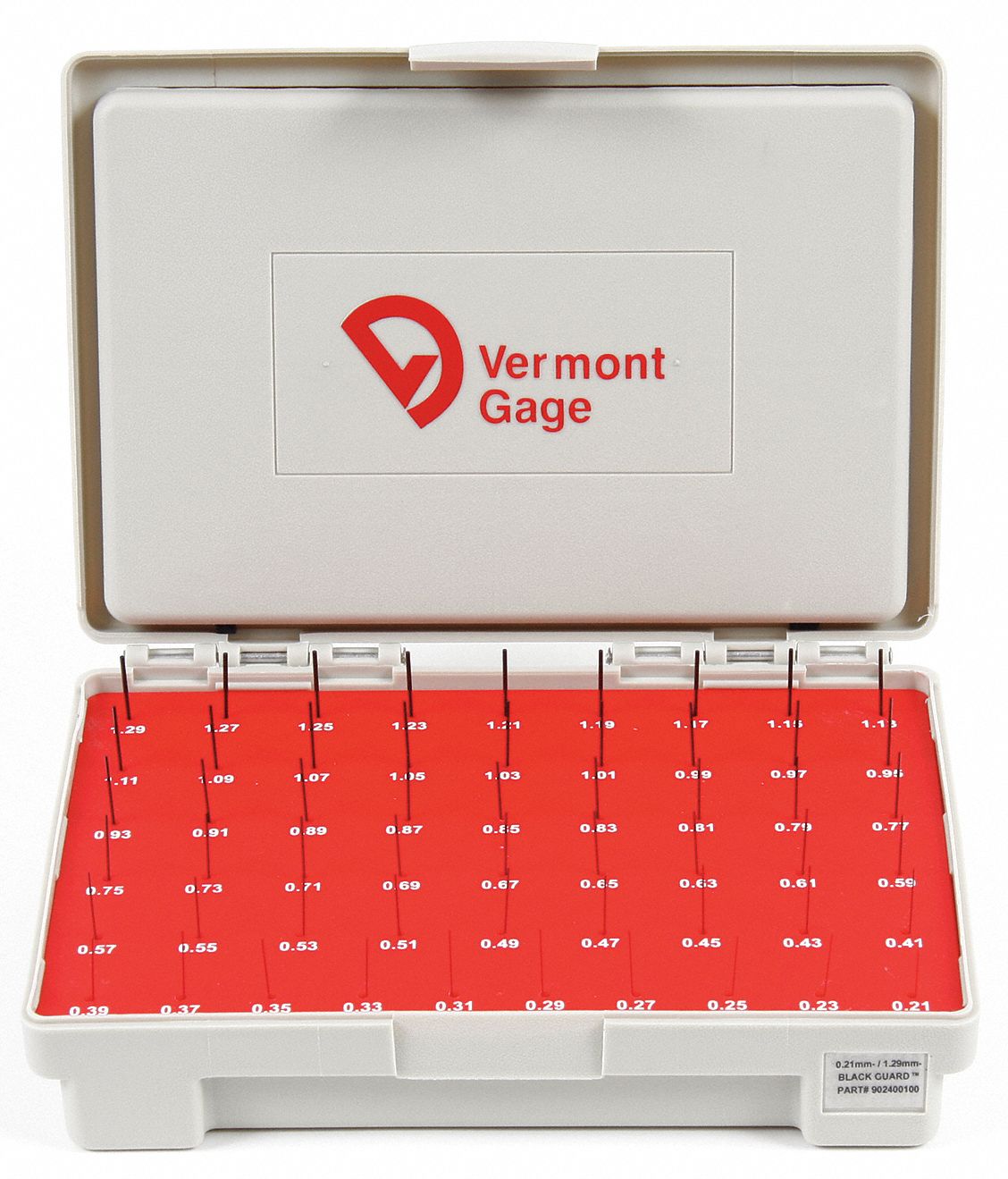

It takes a minus to fit in a hole the size marked on the pin. Likewise a plus pin gauge set includes pins with a specified tolerance above the target dimension creating a no go situation for a bore at the target dimension. Make quick and accurate measurements with vermont gage pin gages. Possibly the minus set is a little more useful.

Use for go nogo inspection. Go gage dimensions are based on. Fwiw the minus sets are more common and slightly less expensive in general. Steel class zz gage pins sets.

There are several basic types of products. Measure hole diameters calculatedistances between holes gageslot widths and locations. I need to do some interference fits 1 4 for example. Enco has free shipping promotions regularly.

If super accuracy is required pin gages are available in 0001 increments. Plug and pin gages are used to compare hole and slot dimensions or locations to specific tolerances. These can be either plus or minus pins. Go gages and no go gages are fixed limit gages with gauging limits based on the plus or minus tolerances of inspected parts.

Tolerance is normally 0002 0000 for zz plus gages and the opposite for minus. However plus minus pin gage sets each have their utility i think it s probably a wash.
